Getting Started with Angular

Create a Grid in Angular

We have built a lightweight and straightforward Angular component for the FusionGrid JavaScript grid Library. The 'angular-fusiongrid' component allows you to easily include FusionGrid in your Angular projects.

This page shows you how to install and render a grid using the 'angular-fusiongrid' component.


  • Install the Node.js, NPM/Yarn globally in your machine.
  • Install AngularCLI globally in your machine.
  • Install the FusionGrid and Angular components in your project.


You can install 'fusiongrid' and the 'angular-fusiongrid' components via npm or Yarn. First, download directly all binaries files located on our github repository and follow the respective steps below.

Install from NPM

Open the terminal and enter:

npm install fusiongrid
npm install angular-fusiongrid

Install from Yarn

Open the terminal and enter:

yarn add angular-fusiongrid


Create your application using the AngularCLI, and import {FusionGridModule} from 'angular-fusiongrid', and 'FusionGrid' to your application. Here is an example:

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import { FusionGridModule } from 'angular-fusiongrid';
  declarations: [
  imports: [
  providers: [],
  bootstrap: [AppComponent]
export class AppModule { }

Configure the Grid

Here is a basic sample that shows how to create a grid using 'angular-fusiongrid'. In the app.component.ts add the below code:

import { Component } from '@angular/core';
import FusionGrid from "@fusioncharts/fusiongrid";
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
export class AppComponent {

  schema = [
        name: 'Rank',
        type: 'number',
    }, {
        name: 'Model'
        name: 'Make'
        name: 'Units Sold',
        type: 'number'
        name: 'Assembly Location'

  data = [
    [1, "F-Series", "Ford", 896526, "Claycomo, Mo."],
    [2, "Pickup", "Ram", 633694, "Warren, Mich."],
    [3, "Silverado", "Chevrolet", 575600, "Springfield, Ohio"],
    [4, "RAV4", "Toyota", 448071, "Georgetown, Ky."],
    [5, "CR-V", "Honda", 384168, "Greensburg, Ind."],
    [6, "Rogue", "Nissan", 350447, "Smyrna, Tenn."],
    [7, "Equinox", "Chevrolet", 346048, "Arlington, Tex."],
    [8, "Camry", "Toyota", 336978, "Georgetown, Ky."],
    [9, "Civic", "Honda", 325650, "Greensburg, Ind."],
    [10, "Corolla", "Toyota", 304850, "Blue Springs, Miss."],
    [11, "Accord", "Honda", 267567, "Marysville, Ohio"],
    [12, "Tacoma", "Toyota", 248801, "San Antonio, Tex."],
    [13, "Grand Cherokee", "Jeep", 242969, "Detroit, Mich."],
    [14, "Escape", "Ford", 241338, "Louisville, Ky."],
    [15, "Highlander", "Toyota", 239438, "Princeton, Ind."],
    [16, "Sierra", "GMC", 232325, "Flint, Mich."],
    [17, "Wrangler", "Jeep", 228032, "Toledo, Ohio"],
    [18, "Altima", "Nissan", 209183, "Smyrna, Tenn."],
    [19, "Cherokee", "Jeep", 191397, "Belvidere, Ill."],
    [20, "Sentra", "Nissan", 184618, "Canton, Miss."],
  dataTable: any;

  gridConfig: any = {
    columns: [
      { field: 'Rank',width: '70px'},
        field: 'Make',
        field: 'Units Sold',
        width: '100px',
        field: 'Assembly Location',
        headerText: 'Assembly Location in US'
  constructor() {
    const dataStore = new FusionGrid.DataStore();
    this.dataTable = dataStore.createDataTable(, this.schema, {
      enableIndex: false

Add the Fusion grid component selector in the app.component.html

`<fusion-grid style="width: 1000px;height: 1000px;" [dataTable]="dataTable"

You can attach an event as follows:

<fusion-grid style="width: 1000px;height: 1000px;" [dataTable]="dataTable" [gridConfig]="gridConfig" (initialized)="initialized($event)"> </fusion-grid>

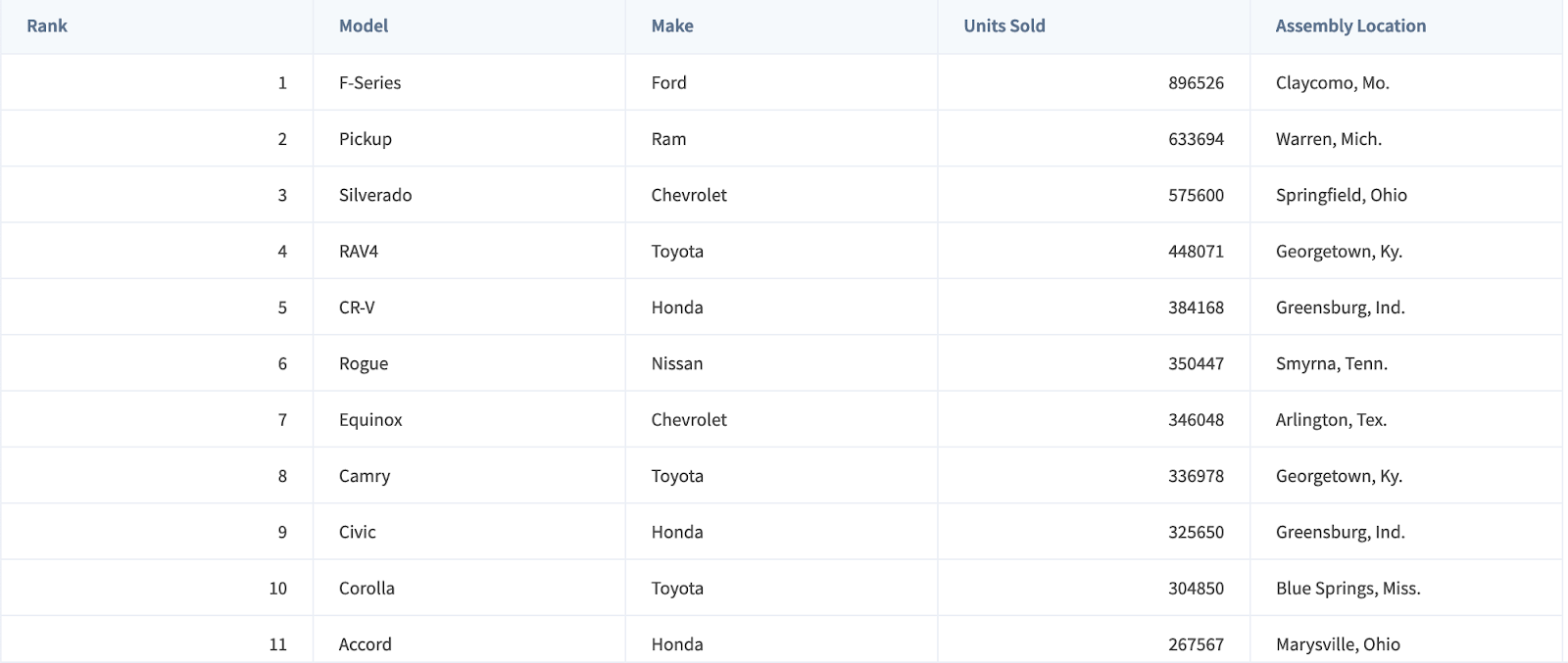

See your grid

Automobile Ranking
