Axes

The axes of a chart are the intersecting lines that act as boundaries of the chart canvas and help you estimate the value of a data plot at a glance. Apart from setting the values for the axes, you can also customize the appearance of the axes, as well as that of the values displayed on them.

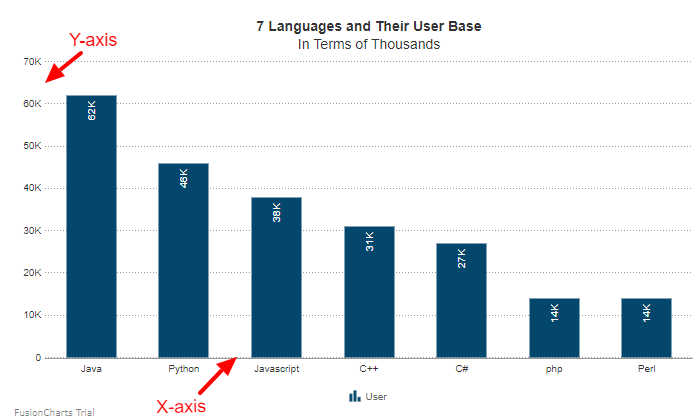

Refer to the image below:

XAxis & YAxis

X-Axis

In FusionCharts.NET Visualization, the x-axis is the horizontal axis of the chart. You can customize the title of the x-axis in the following ways, using the XAxis object under the object.

Set X-Axis Title

Set the title of the x-axis as string to the Text properties. Refer to the code given below:

visualizationObj.XAxis.Text = "chart x axis";

Customize Font Properties

Customize the font properties of the x-axis title using the following:

  • Set the font size as an integer using the FontSize properties.
  • Set the font type as string using the FontName properties.
  • Set the font color as hex code using the FontColor properties.
  • Display the title as bold by setting the Bold properties to true.
  • Display the title as italic by setting the Italic properties to true.

Refer to the code below:

visualizationObj.XAxis.FontSize = 18;
visualizationObj.XAxis.Fontname = "Arial";
visualizationObj.XAxis.FontColor = "#5d62b5";
isualizationObj.XAxis.Bold = true;
visualizationObj.XAxis.Italic = true;

The chart will look as shown below:

FusionCharts will load here..

Customize Border Color

Set the border color of the title as hex code using the BorderColor properties. Refer to the code given below:

visualizationObj.XAxis.BorderColor = "#737373";

Customize Background Color

Set the background color of the title as hex code using the BGColor properties. Refer to the code given below:

visualizationObj.XAxis.BGColor = "#bfbfbf";

Customize Border Thickness

Set the border thickness of the title as hex code using the BorderThickness properties. Refer to the code given below:

visualizationObj.XAxis.BorderThickness = 3;

The chart after applying the above attributes will look as shown below:

FusionCharts will load here..

Y-Axis

In FusionCharts .NET Visualization, the y-axis is the vertical axis of the chart. You can customize the caption of the y-axis using the YAxis object under the visualizationObj object.

Set Y-Axis Title

Set the title of the y-axis as string using the Text properties. Refer to the code given below:

visualizationObj.YAxis.Text = "chart y axis";

Customize Font Properties

Customize the font properties of the x-axis title using the following:

  • Set the font size as an integer using the FontSize properties.
  • Set the font type as the string using the FontName properties.
  • Set the font color as hex code using the FontColor properties.
  • Display the title as bold by setting the Bold properties to true.
  • Display the title as bold by setting the Italic properties to true.

Refer to the code below:

visualizationObj.YAxis.FontSize = 18;
visualizationObj.YAxis.Fontname = "Arial";
visualizationObj.YAxis.FontColor = "#5d62b5";
visualizationObj.YAxis.Bold = true;
visualizationObj.YAxis.Italic = true;

The chart will look like as shown below:

FusionCharts will load here..

Customize Border Color

Set the border color of the title as hex code using the BorderColor properties. Refer to the code given below:

visualizationObj.YAxis.BorderColor = "#737373";

Customize Background Color

Set the background color as hex code using the BGColor properties. Refer to the code given below:

visualizationObj.YAxis.BGColor = "#bfbfbf";

Customize Border Thickness

Set the border thickness of the title as hex code using the BorderThickness properties. Refer to the code given below:

visualizationObj.YAxis.BorderThickness = 3;

The chart after applying the above attributes will look as shown below:

FusionCharts will load here..
