Export charts

In FusionCharts.NET, you could export your charts as images, PDFs, and also choose whether to export at client-side or server-side.

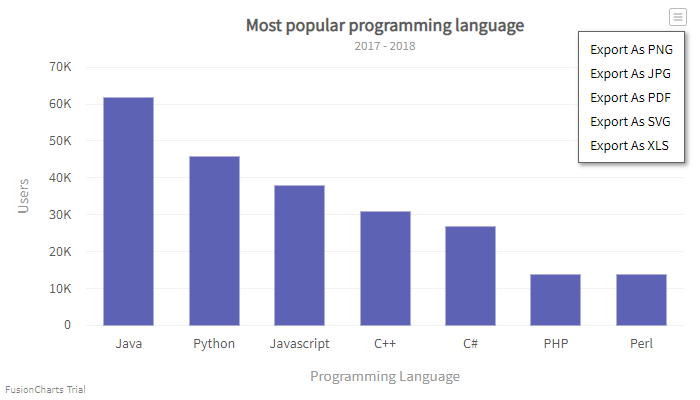

In this article, we will learn how to enable export in the charts. A chart with export enabled is shown in the image below:

Export

Enable Export

By default, the option to export charts is turned off. To enable the export option, refer to the code below:

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using FusionCharts.DataEngine;
using FusionCharts.Visualization;

namespace FusionChartsVisualisationWebFormsSamples.Samples
{
    public partial class FirstChart: System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
           // Create data table
            DataTable primaryData = new DataTable();

            // Retrieve data using database query
            string query = "select [Languages], [User] from dbo.UserPerLanguage";
            string connetionstring = null;

            // Servevr name
            string serverName = "FusionChartsServer";

            // DataBase name
            string databaseName = "FusionChartsSamplesDB";
            primaryData.Clear();

            // Connection string
            connetionstring = "Data Source=" + serverName + ";Initial Catalog=" + databaseName + ";Trusted_Connection=true;";

            using (SqlConnection con = new SqlConnection(connetionstring))
            {
                con.Open();
                using (SqlCommand command = new SqlCommand(query, con))
                using (SqlDataAdapter da = new SqlDataAdapter(command))
                {
                    da.Fill(primaryData);
                }
            }
            // Create static source with this data table
            StaticSource source = new StaticSource(primaryData);
            // Create instance of DataModel class
            DataModel model = new DataModel();
            // Add DataSource to the DataModel
            model.DataSources.Add(source);
            // Instantiate Column Chart
            Charts.ColumnChart column = new Charts.ColumnChart("first_chart");
            // Set Chart's width and height
            column.Width = "700";
            column.Height = "400";
            // Set DataModel instance as the data source of the chart
            column.Data.Source = model;
            // Set Chart Title
            column.Caption.Text = "Most popular programming language";
            // set XAxis Text
            column.XAxis.Text = "Programming Language";
            // Set YAxis title
            column.YAxis.Text = "User";
            // Configure export settings
            column.Export.Enabled = true;
            column.Export.ExportedFileName = "fusioncharts.net_visualizations_exported_files";
            column.Export.Action = Exporter.ExportAction.DOWNLOAD;
            // Render the chart to 'Literal1' literal control

            Literal1.Text = column.Render();
        }
    }
}

In the above code:

  • Instantiate the Column chart.
  • Set the chart width and height.
  • Set the Enabled properties to true to enable the export option.
  • Set the name of the export file by using the ExportedFileName properties.
  • Set the Action properties as DOWNLOAD or SAVE to specify the type of action while exporting.

A chart with export enabled is shown below:

FusionCharts will load here..

In the above chart, click on the export menu on the top right corner of the chart to export.
